ACE XML 2.0 Data Model
and Serialisation |

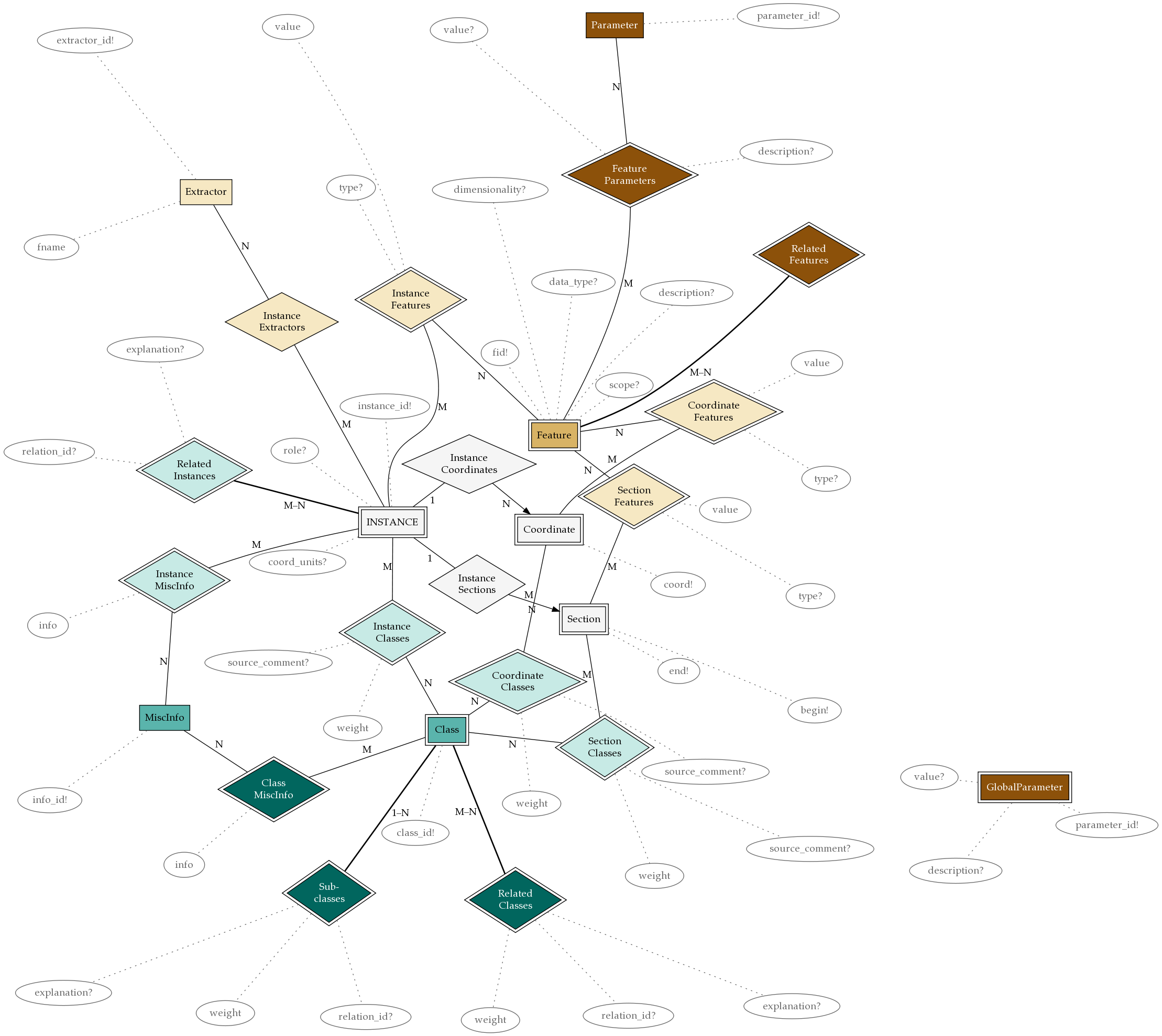

Explanation
- Nodes:
- Rectangular nodes represent entities.
- Diamond nodes represent relationships.
- Oval nodes represent attributes.
- Exclamation marks close attributes that comprise an entity or relationship’s
primary key.
- Question marks close attributes that are optional.
- Double borders indicate that an entity or relationship may be associated
with one or more RDF triples.
- Edges:
- Edges define the structure.
- Solid edges connect relationships to their component entities and are
labelled with the cardinality of the relationship for each component entity.
- Arrowed edges point to entities that are defined weakly, which is to
say that their primary keys include the primary keys of the other entities
in the relationship (see Pin-Shan Chen 1976).
- Bold edges indicate relationships of an entity with itself and are labelled
with both relevant cardinalities.
- Dotted edges connect entities and relationships to their attributes.
- Colours:
- Colours give information related to the serialisation.
- Dark brown designates entities and relationships that appear in Feature
Description files only.
- Medium brown designates entities and relationships that appear in Feature
Description and Feature Value files.
- Light brown designates entities and relationships that appear in Feature
Value files only.
- Light grey designates entities and relationships that appear in Feature
Value and Instance Label files.
- Light blue-green designates entities and relationships that appear in
Instance Label files only.
- Medium blue-green designates entities and relationships that appear
in Instance Label and Class Ontology files.
- Dark blue-green designates entities and relationships that appear in
Class Ontology files only.
