Pseudo MIDI Messages from the Arduino to Max or Pd

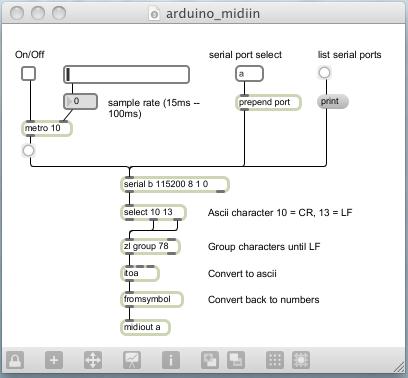

• We can also send MIDI-like messsages from the Arduino to Max/MSP or Pd by slightly modifying the approaches above. From the Arduino, we can send MIDI byte values as space-separated integers. In Max, the messages received by the serial object can be sent directly to the midiout object after conversion to a list of numbers.

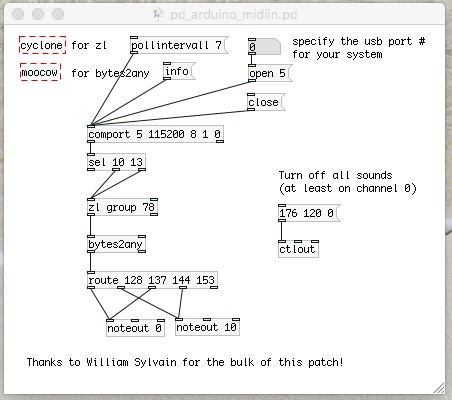

• In Pd, the comport object is used to receive the serial stream. The midiout object in Pd only works for Linux, so we can use route and noteout objects instead, though this requires more careful consideration of the MIDI channels being used.

• If you need to manipulate the message values, then you can unpack them as shown in the previous example.

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_CHANNEL 0

  int status = 0;

  void setup()
  {
    Serial.begin( 115200 );       // set the baud rate
  }

  void loop()
  {
    status = MIDI_ON + MIDI_CHANNEL;
    midi2Max( status, 60, 90 );   // send a MIDI ``note on'' message

    delay( 500 );                 // delay 500 milliseconds

    status = MIDI_OFF + MIDI_CHANNEL;
    midi2Max( status, 60, 0 );   // send a MIDI ``note off'' message

    delay( 500 );                 // delay 500 milliseconds
  }

  // Send a 3 ``byte'' MIDI message (without checking values)
  void midi2Max( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    Serial.print(' ');
    Serial.print( data1 );
    Serial.print(' ');
    Serial.print( data2 );
    Serial.println();
  }




• In another example with MIDI, we can control the pitch of the MIDI message using a sensor.

• Note that we need to perform our internal scaling with a float variable to avoid exceeding the limits of the int data type.

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_PROGRAM 192
  #define MIDI_CHANNEL 0

  int fsrPin = 1;           // FSR pin
  int status = 0;
  int fsr = 0;
  float temp = 0.0;

  // midi2Max function declaration with optional arguments
  void midi2Max( int cmd, int data1 = -1, int data2 = -1 );

  void setup()
  {
    Serial.begin( 115200 );  // set the MIDI baud rate
  }

  void loop()
  {
    fsr = analogRead( fsrPin );    // read the input pin
    temp = fsr;
    temp *= 40;
    temp /= 1024;
    temp += 50;                     // scale the value between 50 - 90
    fsr = temp;

    //status = MIDI_PROGRAM + MIDI_CHANNEL;
    //midi2Max( status, random(64) );

    status = MIDI_ON + MIDI_CHANNEL;
    midi2Max( status, fsr, 90 );   // send a MIDI ``note on'' message

    delay(500);                    // delay 500 milliseconds

    status = MIDI_OFF + MIDI_CHANNEL;
    midi2Max( status, fsr, 0 );   // send a MIDI ``note off'' message

    delay(500);                    // delay 500 milliseconds
  }

  // Send a MIDI message of 1 to 3 ``bytes'' (without checking values)
  void midi2Max( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    if ( data1 >= 0 ) {
      Serial.print(' ');
      Serial.print( data1 );
    }
    if ( data2 >= 0 ) {
      Serial.print(' ');
      Serial.print( data2 );
    }
    Serial.println();
  }


• We can also use the Arduino for sequencing:

  #define MIDI_ON 144
  #define MIDI_OFF 128
  #define MIDI_PROGRAM 192
  #define MIDI_CHANNEL 0

  #define DRUM_CHANNEL 9
  #define BASS_CHANNEL 0

  #define KICK  35    // kick drum note number
  #define HAT 42      // closed hi-hat note number
  #define BASS 39     // bass program number

  int status = 0;
  int counter = 0;
  char bassNote = 28;
  char drumNote = HAT;

  // midi2Max function declaration with optional arguments
  void midi2Max( int cmd, int data1 = -1, int data2 = -1 );

  void setup()
  {
    Serial.begin( 115200 );  // set the MIDI baud rate
    Serial.print( MIDI_PROGRAM + BASS_CHANNEL );  // Do MIDI program change for bass voice
    Serial.print( ' ' );
    Serial.println( BASS );
  }

  void loop()
  {
    if ( counter == 0 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
      midi2Max( MIDI_OFF + BASS_CHANNEL, bassNote, 0 );
      bassNote = 28;
      midi2Max( MIDI_ON + BASS_CHANNEL, bassNote, 64 );
    }
    else if ( counter == 2 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 4 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 6 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 8 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 10 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 12 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = KICK;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }
    else if ( counter == 14 ) {
      midi2Max( MIDI_OFF + DRUM_CHANNEL, drumNote, 0 );
      drumNote = HAT;
      midi2Max( MIDI_ON + DRUM_CHANNEL, drumNote, 64 );
    }

    counter++;
    if ( counter > 15 ) counter = 0;

    delay( 100 );                    // delay 100 milliseconds
  }

  // Send a MIDI message of 1 to 3 ``bytes'' (without checking values)
  void midi2Max( int cmd, int data1, int data2 )
  {
    Serial.print( cmd );
    if ( data1 >= 0 ) {
      Serial.print(' ');
      Serial.print( data1 );
    }
    if ( data2 >= 0 ) {
      Serial.print(' ');
      Serial.print( data2 );
    }
    Serial.println();
  }
