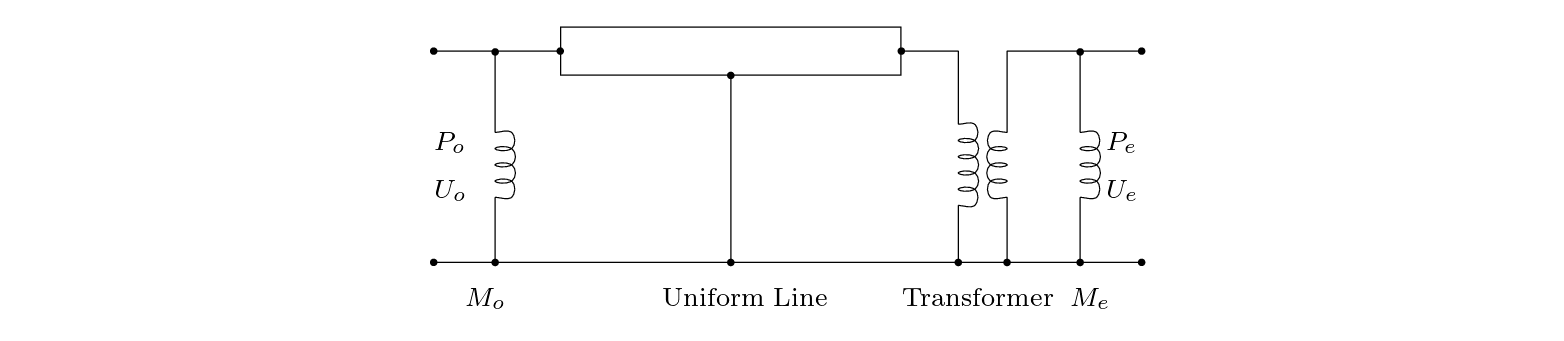

- The acoustic properties of a conic frustum can be represented by an equivalent circuit consisting of a uniform transmission line, two acoustic inertances, and a transformer, as shown in Fig. 14 (Benade, 1988).
- This representation suggests that a conical air column model can be implemented using a cylindrical waveguide, a scalar ``turns ratio'' multiplier, and appropriately designed inertance components at each end of the waveguide.
- An ideal open end, represented by a load impedance of zero, will ``short-circuit'' an input/output inertance.
- The equivalent circuit for an open-open conic frustum then reduces to a uniform transmission line and a scalar transformer term.
- This confirms the fact that a cylindrical pipe open at both ends and an open-open conic section, each of length
*L*, have equivalent longitudinal mode frequencies given by , where*c*is the speed of wave propagation within the structures. - A pressure-controlled wind instrument excitation mechanism, such as a saxophone reed-mouthpiece or trumpet player lip-reed, functions as a nearly rigid, time-varying termination at an air column input.
- When attached to the input of a conical waveguide, the parallel driver impedance and input inertance (
*M*_{o}) combination plays a significant role in determining the overall behavior of the air column.
