Output Waveforms

After verifying an element's function, I routed a direct output from the individual elements and compared the output waveforms at increasing octaves from A0 to A7. An example is shown if Fig. 2 In SynthBuilder, I did this manually, sending notes from the clavier one at a time. In the STK implementation, I created a loop that automatically outputs each note at a desired interval. By comparing the output waveforms, I confirmed the behaviour and parameters of each element.

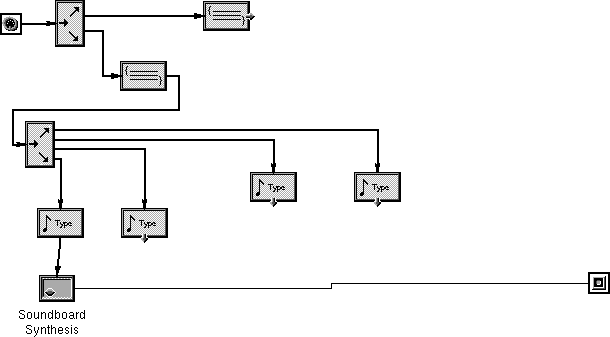

Figure 2: Direct flow path from the soundboard.
