Time-domain synthesis of conical bore instrument sounds

Model Approaches: The ``Cyclone''

Despite significant inharmonicity of the input impedance peaks, the resulting synthesis spectrum is harmonic and exhibits contributions from ``misaligned'' peaks as a result of the non-linear regenerative process.

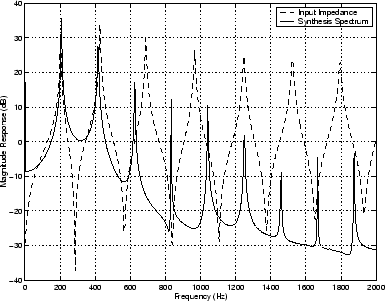

**Figure 10:** Example ``cyclone'' model input impedance and synthesized sound spectrum.
$\begin{figure}\begin{center} \epsfig{file = figures/cyclone-spectra.eps,width=3in} \end{center} \end{figure}$
