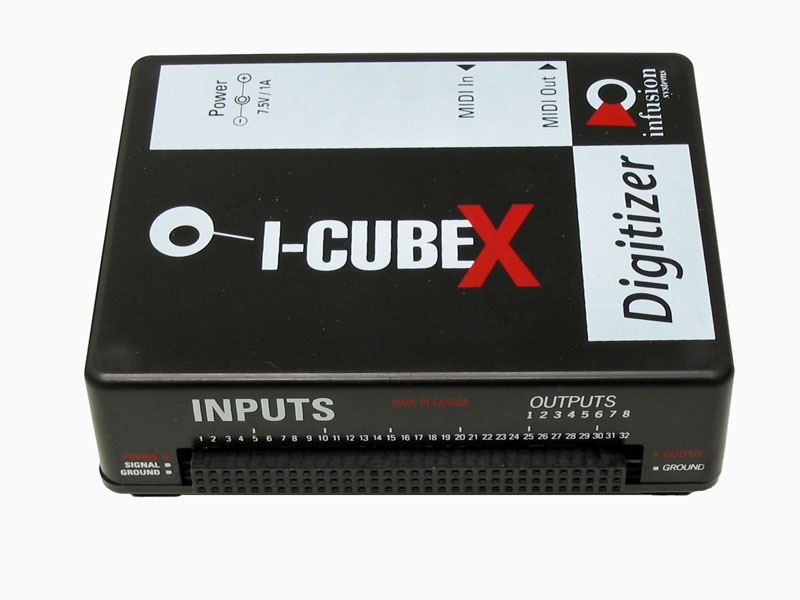

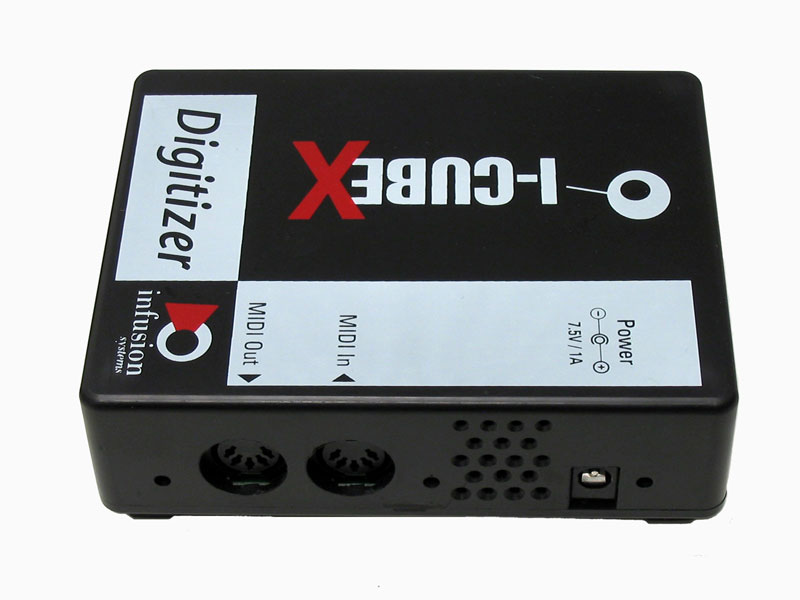

The
Digitizer
by
I-CubeX
Cost: $198 US
Connection: MIDI
Inputs / Outputs: 32 / 8
Signal Bandwidth: 24 – 244 Hz (depends on number of I/O pins in use)
ADC Resolution: 7 or 12 bit
Power: external 7.5 V supply
Sensors are generally purchased from Infusion Systems, at significant cost.
Programmed from a host computer via MIDI system exclusive messages (Windows, OS-X, 3rd party Linux).
Can save settings for “stand alone” mode.
