Feedback Delay Networks (FDN)

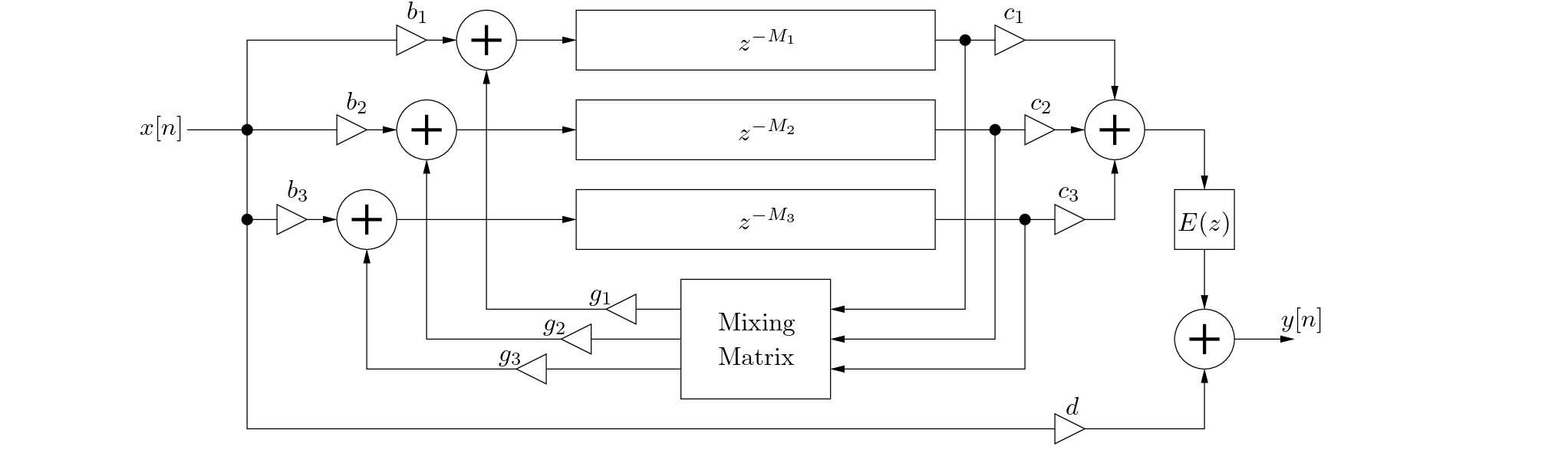

**Figure 14:** A feedback delay network structure proposed for artificial reverberation by Jot (1992).
$\begin{figure}\begin{center} \begin{picture}(7.0,2.4) \put(0.25,0){\epsfig{fil... ...$y[n]$} % put(6.3,0.54)\{$y[n]$\} \par \end{picture} \end{center} \end{figure}$

Figure 14 illustrates an example FDN reverberator using three delay lines proposed by Jot (1992).
An FDN can be seen as a vector feedback comb filter, with feedback “channels” (=3 in Fig. 14).
The “mixing matrix” provides diffusion by “scattering” energy amongst the channels. Assuming decay control is handled by the $g_{i}$ coefficients, this matrix should be “lossless”.
To achieve frequency-dependent decay control, the $g_{i}$ coefficients can be replaced by low-order digital filters.
The “tonal correction” filter is a low-order filter which serves to equalize modal energy amongst the three bands.
The delay-line lengths are generally chosen to be mutually prime. System “tuning” remains a manual, trial and error process.
