Ring Modulation in Complex Exponential Notation
A
ring modulation
signal flow diagram is shown in Fig.
6
.
Figure 6:

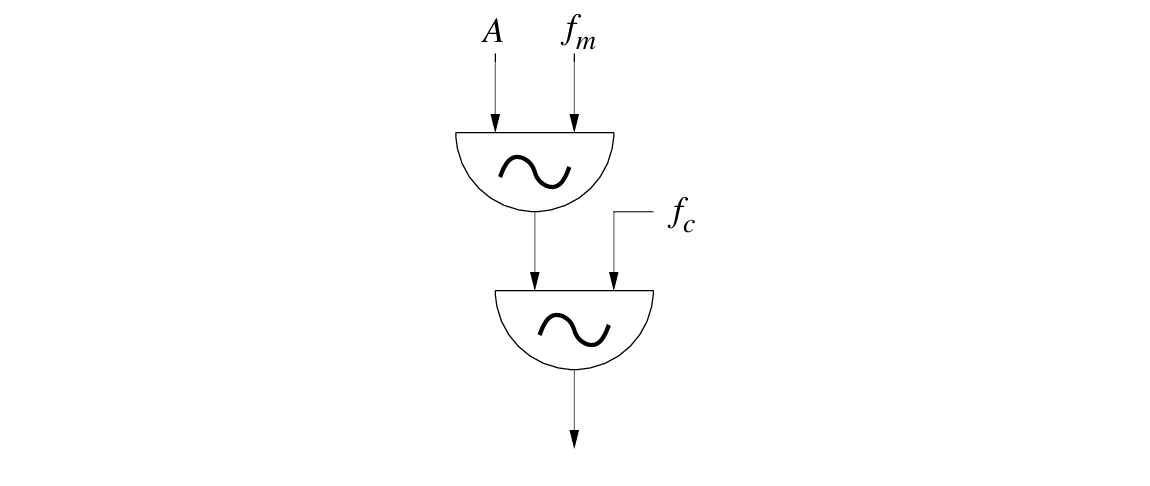

A signal flow diagram for ring modulation.
We can use complex exponential notation to determine the resulting spectrum of the following sinusoidal ring modulation example:
Figure 7:

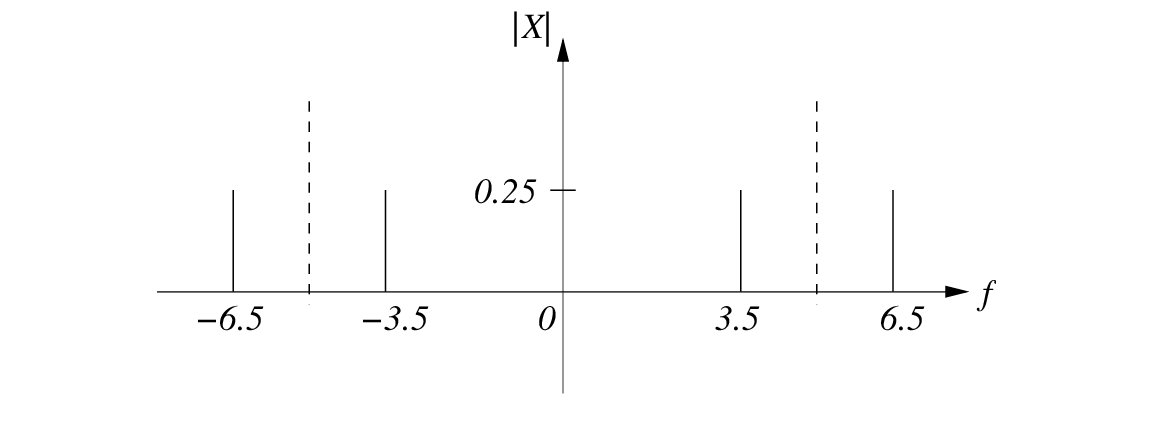

The resulting ring modulation spectrum.

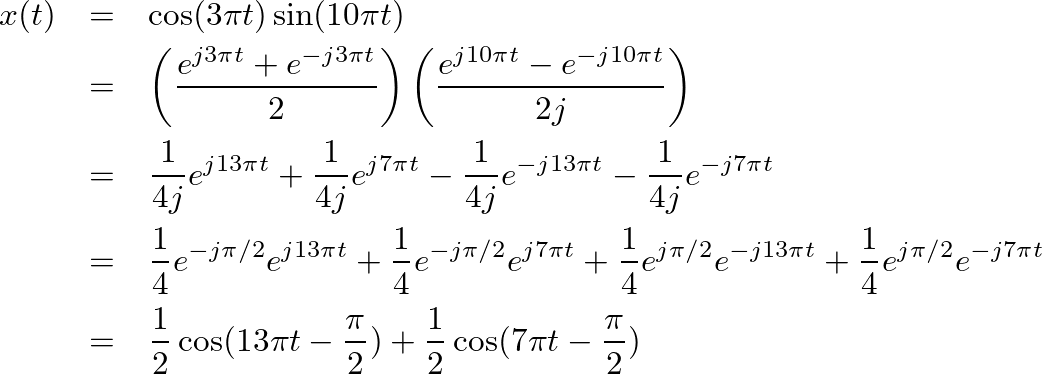

We thus see that the product of two sinusoids can be written as a summation:
where
and
.
Note that this is equivalent to applying a sinusoidal amplitude envelope to a carrier oscillator.
Also note the absence of the carrier frequency in the resulting spectrum.
