Time-domain synthesis of conical bore instrument sounds

The Conical Waveguide Equivalent Circuit

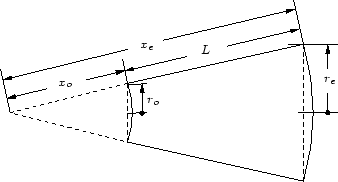

The conical waveguide:

**Figure 3:** A conical waveguide.
$\begin{figure}\begin{center} \begin{picture}(3,1.7) \put(0,0.13){\scalebox{0.6... ...){\footnotesize$r_{o}$} \end{picture} \end{center} \vspace{-0.2in} \end{figure}$

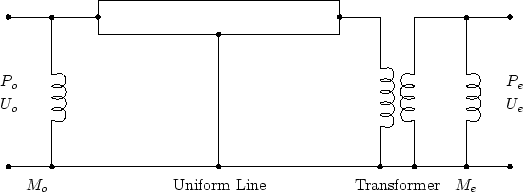

A conic frustum can be represented by a cylindrical waveguide section, two acoustic inertances, and a transformer (Benade, 1988).

**Figure 4:** Equivalent circuit of a conical waveguide.
$\begin{figure}\begin{center} \begin{picture}(4.5,1.8) \put(0,0.13){\epsfig{fil... ... \put(4.4,0.7){$U_{e}$} \end{picture} \end{center} \vspace{-0.2in} \end{figure}$

An ideal open end ( $Z_{L} = 0$ ) will ``short-circuit'' an input/output inertance.
