Time-domain synthesis of conical bore instrument sounds

Properties of a Conic Frustum

The effects of truncation can be reduced by utilizing a reed/mouthpiece cavity with an equivalent volume equal to that of the missing conical section (Benade, 1976).

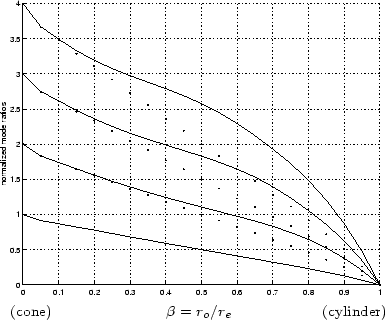

**Figure 6:** Modal frequencies for a closed-open, cylinder-cone compound horn in which the cylindrical section volume is equivalent to the missing conic section volume. The dotted curves indicate integer relationships to the first mode.
$\begin{figure}\begin{center} \begin{picture}(3,2.5) \put(0,0.15){\epsfig{file ... ...\beta = r_{o} / r_{e}$} \end{picture} \end{center} \vspace{-0.2in} \end{figure}$
