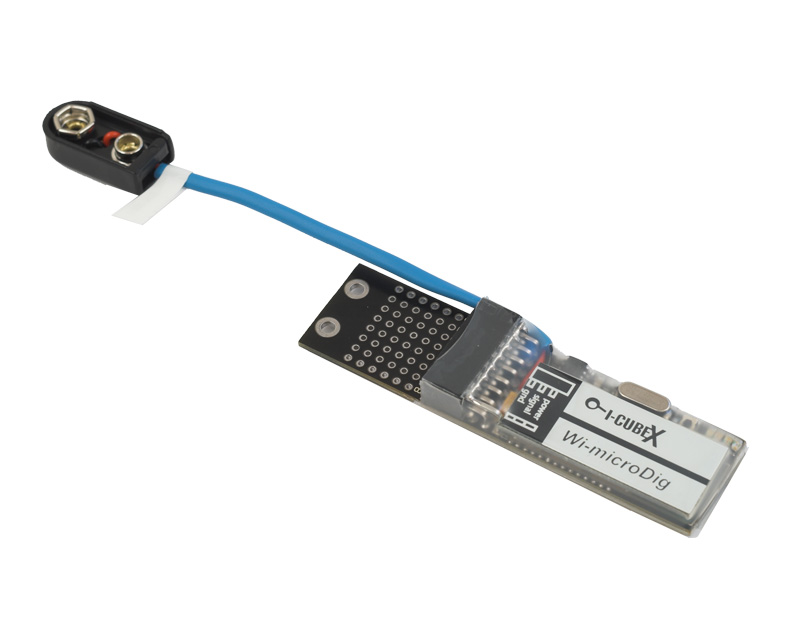

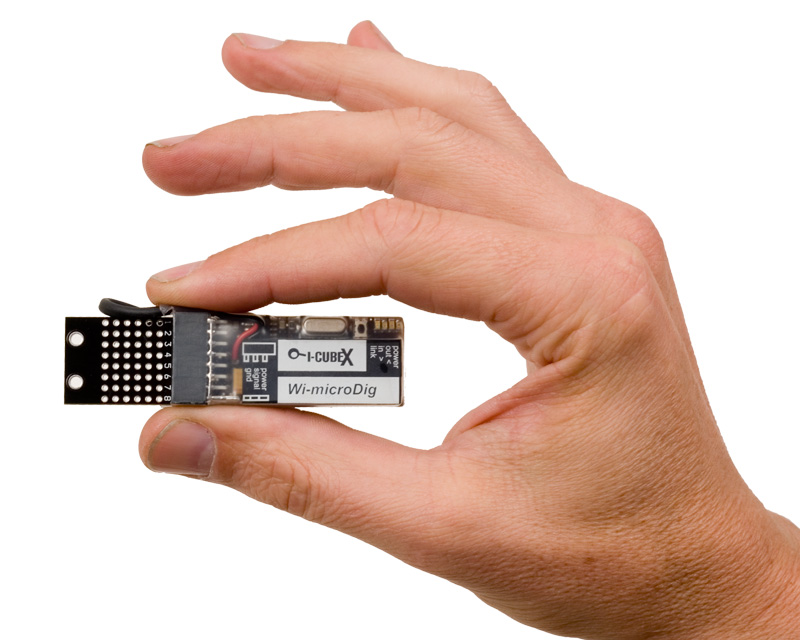

The
Wi-microDig
by
I-CubeX
Cost: $179 US
Connection: MIDI over Bluetooth (wireless)
Inputs / Outputs: 8 / 0
Signal Bandwidth: 1500 Hz
ADC Resolution: 7 or 10 bit
Power: external 7.5 V supply
Sensors are generally purchased from Infusion Systems, at significant cost.
Programmed from a host computer via MIDI system exclusive messages (Windows, OS-X, 3rd party Linux).
Can save settings for “stand alone” mode.
