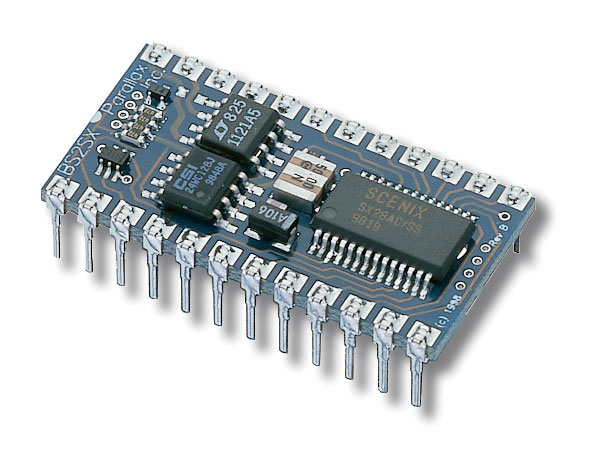

The
BASIC Stamp
by
Parallax
Cost: $50 and higher US (cheaper in quantity)
Connection: serial (or USB-to-serial interface)
Inputs / Outputs: 16 (32 on BS2p40)
Signal Bandwidth: depends on output serial port speed
ADC Resolution: No built-in ADC but supports 16-bit math
Power: external 5 – 12 V DC supply (can be battery)
User must buy and design own sensor circuits
Programmed from a host computer via serial interface
Output via MIDI protocol is typical (with speed and bit limits)
Can save multiple programs in “stand alone” mode (on models with scratch pad RAM).
