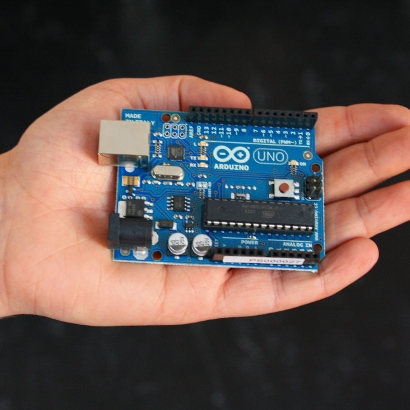

The
Arduino i/o board
by
Arduino
Cost: around $20–$30 US
Connection: USB (as well as other options)
Inputs / Outputs: 6 analog inputs, 14 digital inputs/outputs
ADC Resolution: 10 bit
Power: from USB or external 9 – 12 V supply
User must buy and design own sensor circuits
Programmed from a host computer via USB
Can save settings for “stand alone” mode
Free open-source software development system available for Windows, OS-X, and Linux
Programmed using a language called “Wiring”
