Feedback Comb Filters
A feedback comb filter is illustrated in Fig.
12
.

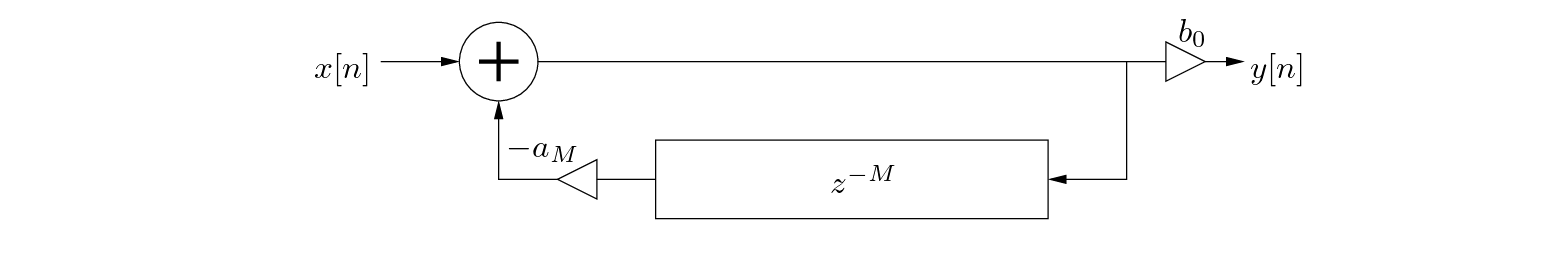

Figure 12:
A feedback comb filter block diagram.
The difference equation for this filter is given by:
For stability, the coefficient
.
The transfer function of the feedback comb filter is
from which the amplitude response is found as
The magnitude response of a feedback comb filter, calculated with the Matlab script
combs.m
, is shown in Fig.
13
for
,
, and
= -0.1, -0.5, and -0.9.

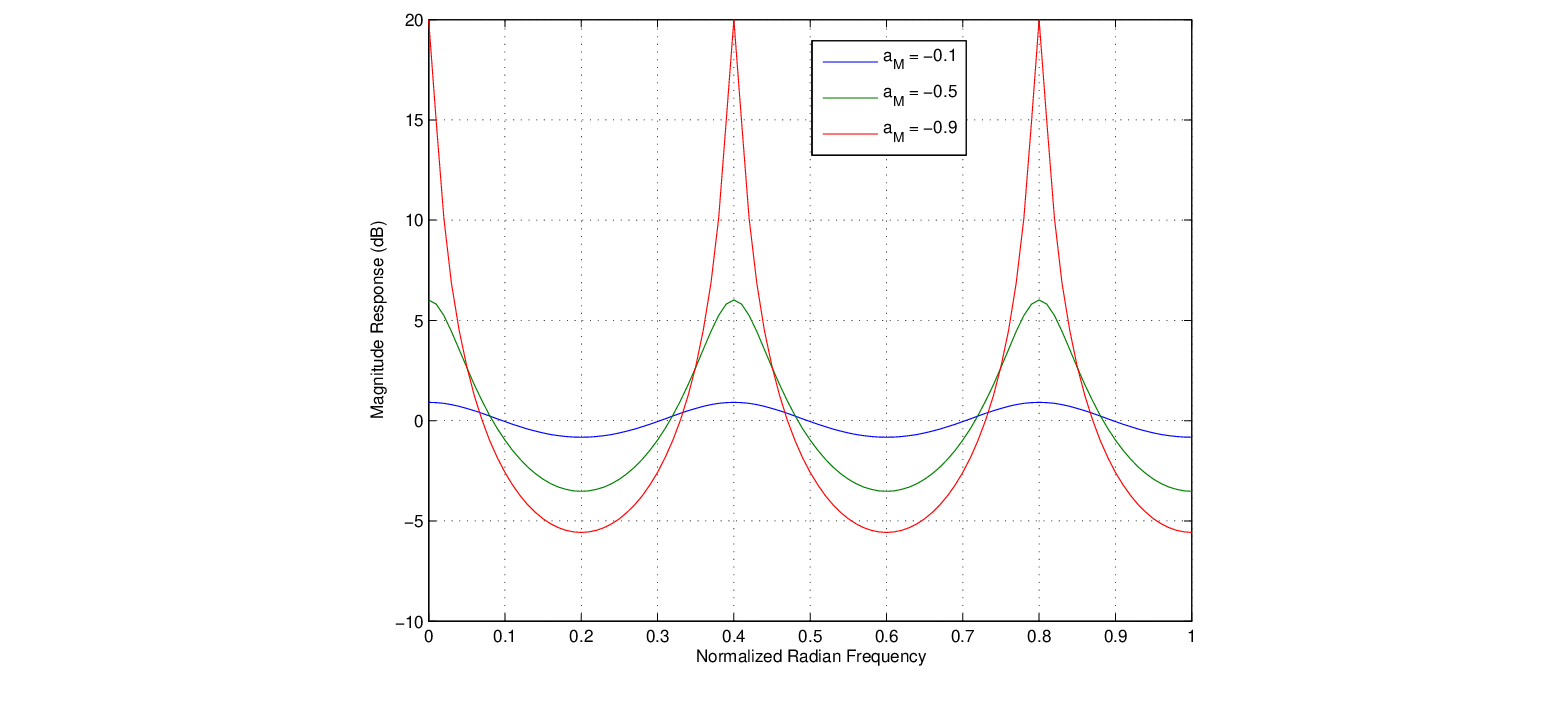

Figure 13:
Magnitude response of a feedback comb filter with
,
, and
= -0.1, -0.5, and -0.9.
